- Product Advantages -



Home > Product Advantages

Aluminum Substrate

Equipment

Process Control

Aluminum Substrate Supply

All aluminum substrates are supplied by domestic producers such as Chuangxin Aluminum, Chalco, and Southwest Aluminum, supported by a dedicated supply chain that ensures consistent substrate quality.

Physical Properties of Aluminum Substrate
Grade	Cladding type	SupplyTemper	SampleTemper	Thickness/mm	Tensile Test Results at Room Temperature				Bend Radius h
					Tensile	0.2% Proof	Elongation after Fracture m / %
					Strength	Stress Rp0.2/MPa
					Rm/MPa		A50mm	A	90°	180°
					Not less than
3003	一	H14	H14	>0.20～0.50	145～195	125	2	一	0.5t	2.0t
				>0.50～1.50			2		1.0t	2.0t
				>1.50～3.00			3		1.0t	2.0t
				>3.00～6.00			4		2.0t	一
3003	一	H22	H22	>0.20～0.50	120～160	80	6	一	0t	1.0t
				>0.50～1.50			7		0.5t	1.0t
				>1.50～3.00			8		1.0t	1.0t
				>3.00～6.00			9		1.0t	一
		H24	H24	>0.20～0.50	145～195	115	4	一	0.5t	1.5t
				>0.50～1.50			4		1.0t	1.5t
				>1.50～3.00			5		1.0t	1.5t
				>3.00～6.00			6		2.0t	一
3004	一	H14	H14	>0.20～0.50	220～265	180	1	一	0.5t	2.5t
				>0.50～1.50			2		1.0t	2.5t
				>1.50～3.00			2		1.5t	2.5t
				>3.00～6.00			3		2.0t	一
		H24	H24	>0.20～0.50	220～265	170	3	一	0.5t	2.0t
				>0.50～1.50			4		1.0t	2.0t
		H34	H34	>1.50～3.00			4		1.5t	2.0t
		H16	H16	>0.20～0.50	240～285	200	1	一	1.0t	3.5t
				>0.50～1.50			1		1.5t	3.5t
				>1.50～3.00			2		2.5t	一
		H26	H26	>0.20～0.50	240～285	190	3	一	1.0t	3.0t
		H36	H36	>1.50～3.00			3		1.5t	一
3104	一	H26	H26	>0.20～0.50	245	一	1	一	2.0t	2.0t
				>0.50～0.80			2		2.0t	2.0t
				>0.80～1.30			3		2.5t	2.5t
				>1.30～3.00			4		2.5t	2.5T
		H18	H18	>0.20～0.50	265	一	1	一	一	一
		H38	H38
		H28	H28	>0.20～0.50	265	一	1	一	一	一
		H19	H19	>0.20～0.50	275	一	1	一	一	一
		H29	H29
		H39	H39
		F	一	>0.20～0.50	一

Chemical Composition of Aluminum Substrate
Grade	Chemical Composition (Mass Fraction) (%)												Remarks(Old Grade)
	Si	Fe	Cu	Mn	Mg	Cr	Zn		Ti	Other		Al
	(Si)	(Fe)	(Cu)	(Mn)	(Mg)	(Cr)	(Zn)		(Ti)	Individual	Total	(Al)
3A21	0.6	0.7	0.2	1.0~	0.05	—	0.10④	一	0.15	0.05	0.1	Balance	LF21
				1.6
3003	0.6	0.7	0.05~	1.0~	一	一	0.1	一	一	0.05	0.15	Balance	—
			0.2	1.5
3103	0.5	0.7	0.1	0.9~	0.3	0.1	0.2		—	0.05	0.15	Balance	一
				1.5				Ti+Zr:
								0.1
3004	0.3	0.7	0.25	1.0~	0.8～1.3	一	0.25	一	—	0.05	0.15	Balance	—
				1.5
3005	0.6	0.7	0.3	1.0~	0.20～0.6	0.1	0.25	一	0.1	0.05	0.15	Balance	—
				1.5
3105	0.6	0.7	0.3	0.30~	0.20～0.8	0.2	0.4	一	0.1	0.05	0.15	Balance	—
				0.8

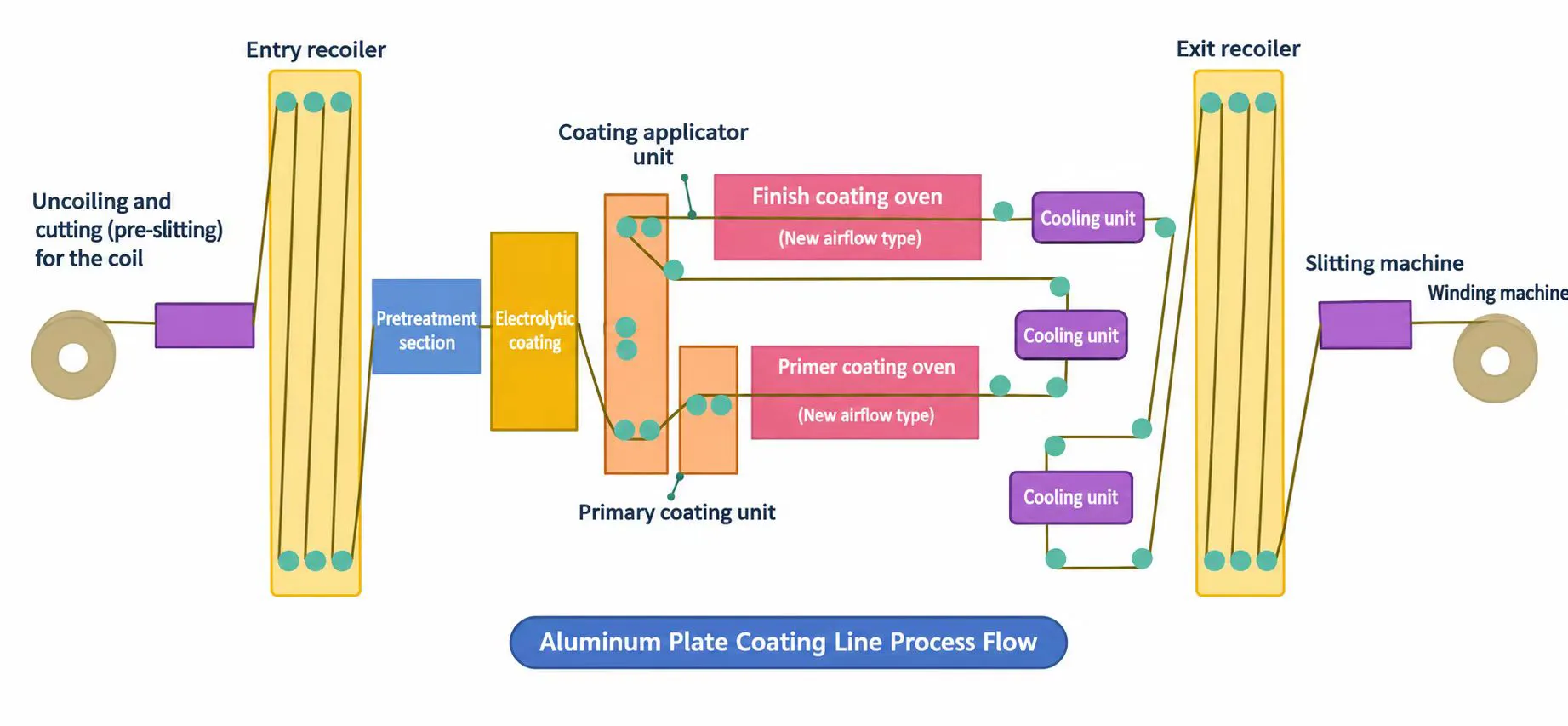

Equipment and Process Description

The company is equipped with a color-coated coil production line with relevant processing capacity.

We continuously upgrade and optimize our processes by drawing on proven color-coating technology experience from both domestic and overseas industries, so as to steadily improve the manufacturing technology of color-coated Al-Mg-Mn sheets.

Process Control and Continuous Optimization



Coating Adhesion Control

A cleaning system is installed to clean the surface of raw sheets, together with a passivation process to enhance the bonding strength of the coating.

Eco-friendly Process Features

Chromate-free primer process is adopted to meet relevant environmental control requirements.

Film Thickness Uniformity Control

The coater supports color change operations and enables standardized control of coating thickness on the top side. A curing oven is matched to complete coating curing, ensuring the adhesion and stability of the coating.



Color Difference Control

The oven is equipped with a fresh air system to reduce batch-to-batch color variation for products of the same specification.


